Sweep Frequency Generator Notes

Both the frequency vernier and the sweep input can control up to 1000 1 frequency change within a selected range.

Sweep frequency generator notes.

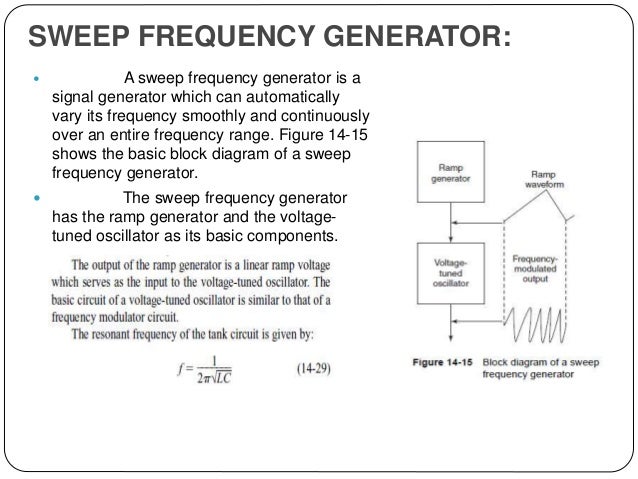

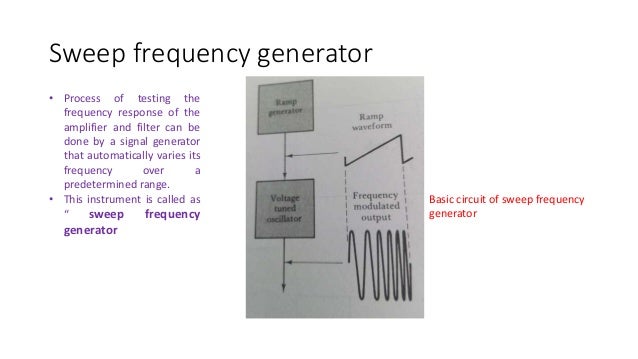

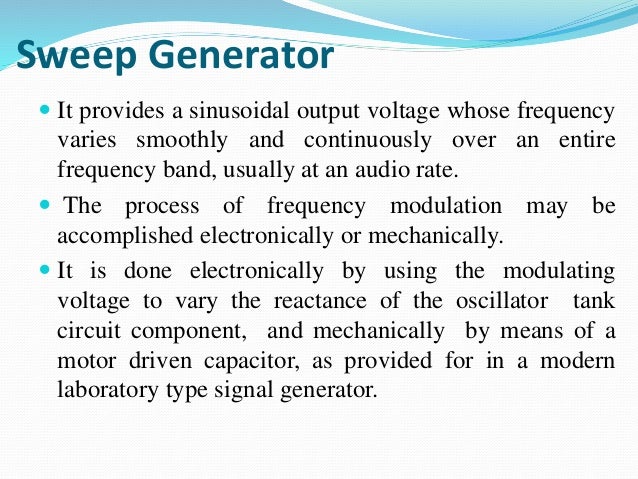

Sweep frequency generators are primarily used for measuring the responses of amplifiers filters and electrical components over various frequency bands. To change the wave type from a sine wave pure tone to a square triangle sawtooth wave click the button. The gray 2mhz wavetek sweep function generator model 19 is from the 1st and 2nd year labs. To adjust the frequency by 0 01 hz press ctrl and ctrl.

Frequency generator packs ten high quality and user friendly signal generation tools. The setup became impossible. The sweep generator tool also enables you to set some more advanced options. Once the play button is pressed the frequency sweeper will then play a tone that begins at the first frequency and sweeps to the second frequency in the duration provided.

Single frequency multi frequencies musical notes binaural beats frequency sweep generator noise generator bass subwoofers test speaker cleaner dtmf tones sound effects generator common use cases make your own audio experiments. The frequency range of a sweep frequency generator usually extends over three bands 0 001 hz 100 khz low frequency to audio 100 khz 1 500 mhz rf range and 1 200 ghz microwave range. For wideband sweeping in the upper frequency range the sweep tuning was somewhat acceptable but let s say we wanted to look at tight 455 khz or 10 7 mhz if filters in the lower frequency ranges using a suitable sweep width for these frequencies 100 khz and 500 khz respectively. This frequency sweep tool allows you to enter any two frequencies and a duration into the three boxes below.
